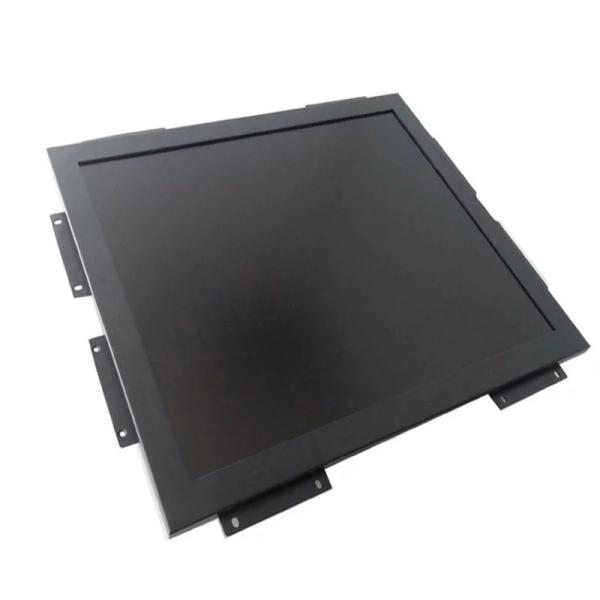

1280*1024 Open Frame Touch Screen Monitor

Product Categories

Shenzhen Hopestar SCI-TECH Co., Ltd.

Contact Now

Name: 12801024 Open Frame Touch Screen Monitor
Brand: OEM or CNHOPESTAR
Price: 1 USD

Brand Name : OEM or CNHOPESTAR

Model Number : HOP170-8

Certification : CE&FCC&Rohs

Place of Origin : Guangdong,China

MOQ : 1

Price : Price can be negotiable

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 50000 pcs/month

Delivery Time : 2-8 working days

Packaging Details : 59x10x27cm

Screen size : 17 inch

Color : Black

Resolution : 1280x1024

Interface type : VGA and DVI , HDMI, RS232- optional

Type : Resistive Touch, 4-wires, 5-wires

Brightness : 350cd/m2 (1000cd/m2, optional)

Installation : Kiosk, embeded, wall mount

Warranty : 3 years

Touch : Capacitive Touch

Case : Industrial Metal Frame

Contact Now

Open Frame Touch Monitor 17 inch 1280*1024 USB Touch Metal Frame Industrial

Various choices of surface treatments available, anti-Newton, -glare, special chemical strengthen hard coating,anti-reflection; Capable of handing spacer dots diameter is less than 0.035mm; Has our own factories,so our price is competitive; Excellent sales service; Applications: Light industry; Home appliances; Portable sport devices; Access control terminals; Portable medical devices
17 inch Usb Touch Screen lcd monitor for machine: USB control ,HDMI VGA input,DC 12V/4A input.17 TFT LED panel resalution:1024X768.brightness 800cd/m2,conrtast ratio 900:1,5 wire line touch screen panel,USB control;
Faceplate surface: anti-glare coating and glare coating; Film thickness: 0.175 and 0.188mm; Glass thickness: 0.7, 1.1 and 1.8mm; Operation pressure: 20 to 150g; Storage temperature: -30 to 80¡ãC;Message noise: 5 to 15m/second; Operating current: 5 to 25mA; Humidity: <95%; Isolation resistance: 20M¦¸¡ü, 25V DC;Sealable against dust, water, oil and static; Advantages: Products insulation point is ¦µ0.03mm

General
Series	Water-proof and Open frame
LCD Type	17” TFT-LCD
Video Input	VGA and DVI , HDMI - optional
OSD controls	Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply	Type: External brick
	Input (line) voltage: 100-240 VAC, 50-60 Hz
	Output voltage/current: 12 volts at 4 amps max
Mount Interface	1)VESA 75mm and 100mm
	2)2)Mount bracket, horizontal or vertical

LCD Specification
Active Area(mm)	339.8(H)×272.5(V)
Resolution	1280x1024
Dot Pitch(mm)	0.3075×0.3075
Nominal Input Voltage VDD	+3.3V(Typ)
Viewing angle (v/h)	60°/70°(CR>5)
Contrast	1000:1
Luminance(cd/m2)	350, 1000cd/m2 - optional
Response Time(Rising/Falling)	5ms/5ms
Support Color	16.2M colors
Backlight MTBF(hr)	50000

Product Tags:

1280*1024 open frame lcd monitor
